ELCO-100

Electric Local Controller

The ELCO-100 controller is designed for marine installations and other industrial applications - such as lubricating oil and cooling water installations, flow temperature control etc.

The universal analog input is user programmable, for either RTD temperature probes, thermocouples, or current/voltage signals.

The setpoint value, the actual value, and other parameters are displayed on the LED displays.

The device can be connected to a central control system using the RS485 serial interface (Modbus).
This enables remote control and reading of the setpoint value and process value as well as transmission of alarms to to a central control and alarm system.

Instead of operating the device from the front, the user can also programme the controller using the setup program and USB interface; this requires no additional voltage supply for the controller.

Benefits

• Self-optimisation (autotuning) for exact PID control
• Large and clear display with all relevant information
• Can be used with both PT100 and any 4-20 mA sensor input

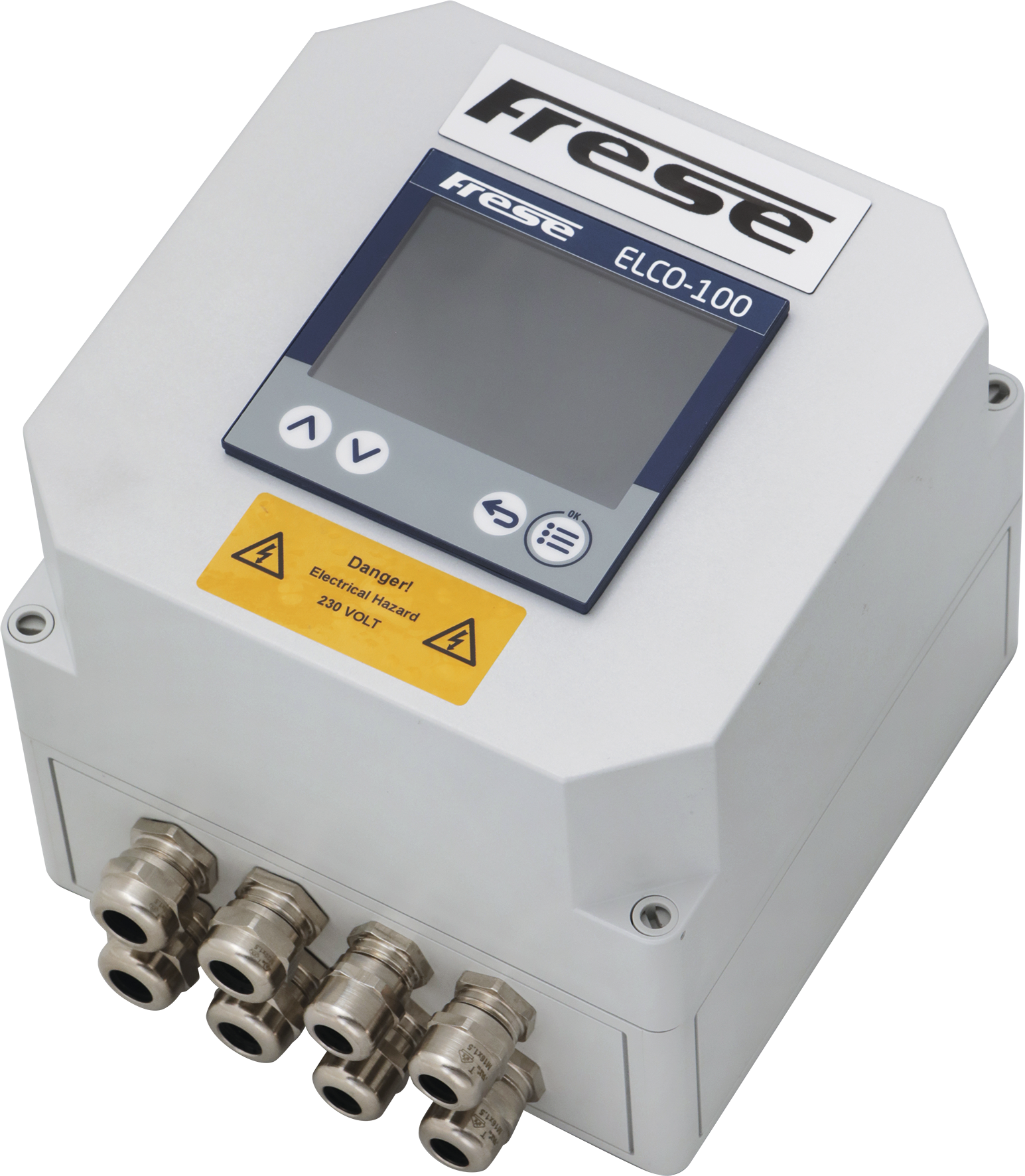

Cabinet solutions

Ready to install cabinets available with additional benefits:

• Power distribution to sensors and actuators in cabinets
• 24V transformer inside cabinet for transmitter readings
• Minimum external wiring
• Standalone control system for valve control
• Available with 1, 2 or 3 controllers per cabinet.

Features

• 96 × 96 mm format
• Continuous modulating and 2/3 point control
• Sensor monitoring
• Up to 5 outputs
• Manual/automatic mode
• Configurable limit value monitoring (alarms)
• Setpoint changeover
• Level inhibit and key lock
• RS485 interface (Modbus RTU)
• Ramp and timer function
• Push-in controller insert
• Setup interface (USB Mini-B)
• Marine type approval
